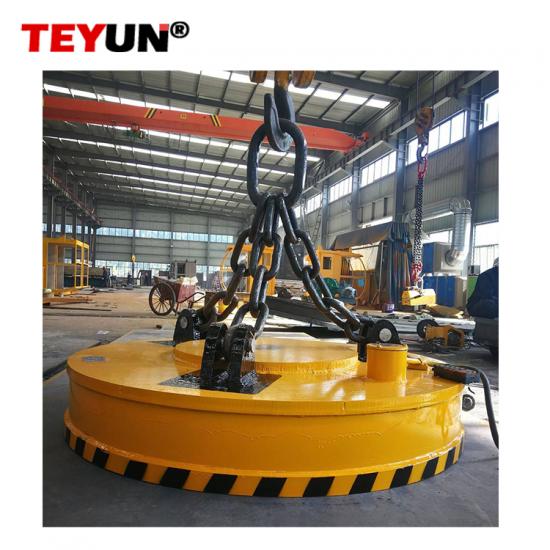

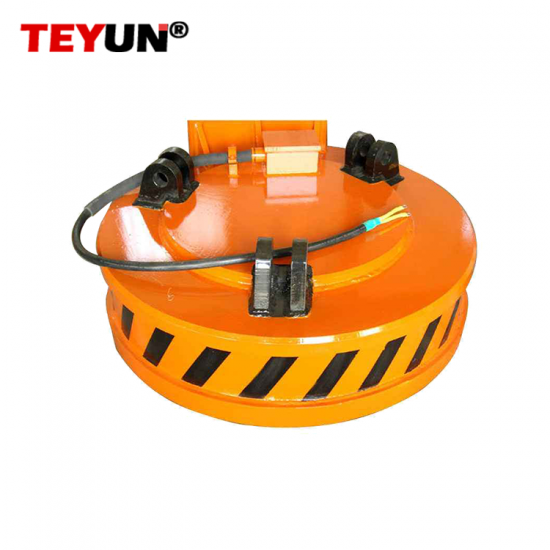

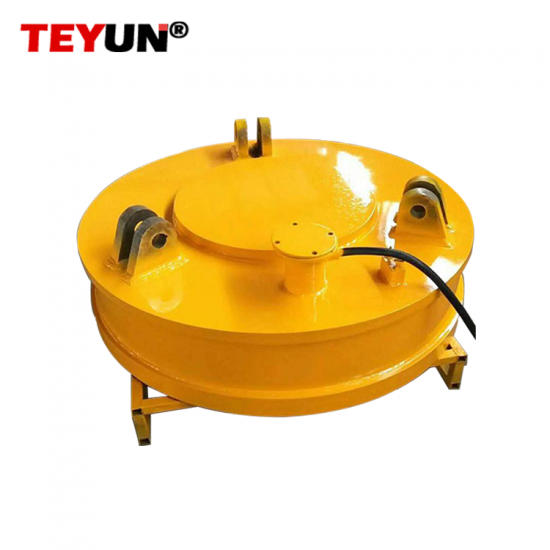

Electromagnet for lifting the scrap metal

Lifting Electromagnet is special equipment which utilizes the electric & magnetic physical quantity to lift attached materials and has become indispensable when to lift and transport.
  • 品牌:

    Teyun
  • 订购 (最小量):

    1
  • 原产地:

    Jiangsu,China
  • 颜色:

    Customized
  • 发货周期:

    20days
  • 质保期:

    1 year
  • 认证:

    CE/ISO
  • 运用:

    Lifting eletromagnet is used for lifting the scrap metal

Electromagnet for lifting the scrap metal

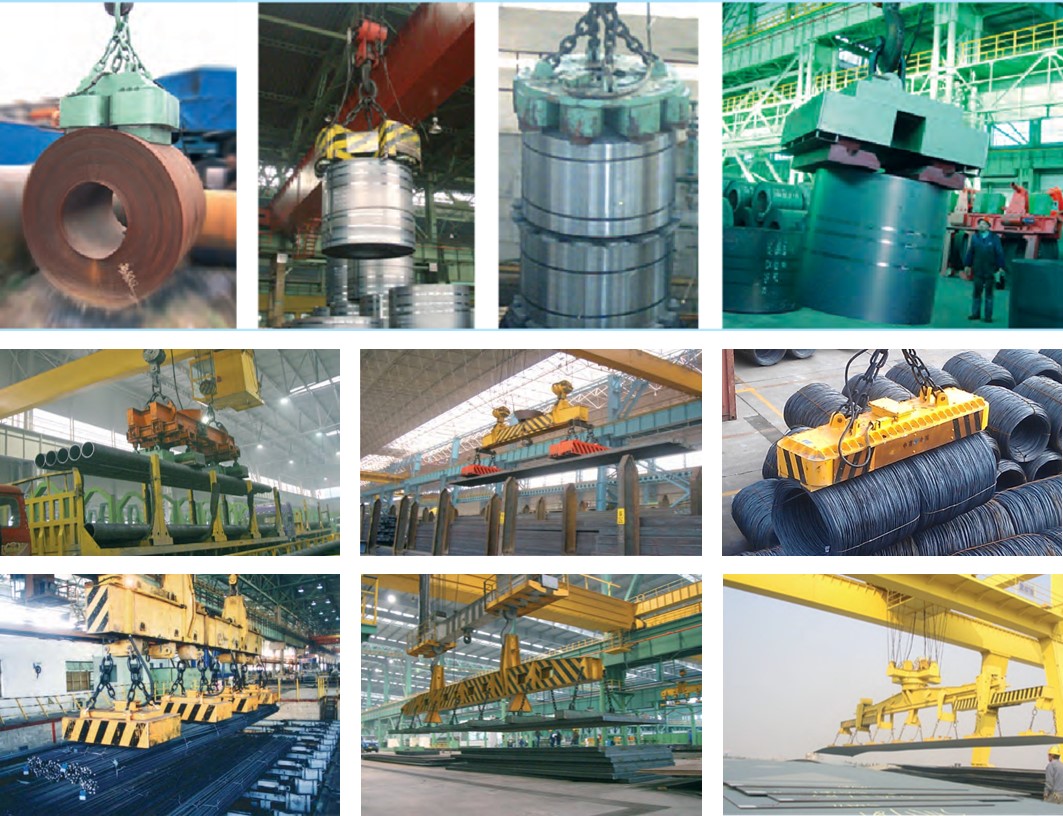

Lifting Electromagnet is special equipment which utilizes the electric & magnetic physical quantity to lift attached materials and has become indispensable when to lift and transport Magnetically permeable materials in lines of metallurgy, mine, machinery, shipbuilding and transportation, etc., and it can also be used as electromagnetic manipulator, magnetic force centering, bar length fixing and so on in some fields.


Ø  Adopt totally sealing structure with good property of moisture-proofing. Non- magnetic fender is made of rolled Mn plate which has good property of good moisture resistance, magnetism-isolation, wear-resistant and shockproof.


Ø  Overseas technology has been introduced, improved, innovated, as well as get optimum designed by computer to make our products reasonable structure, light self- weight, strong attraction force and low energy consumption.

Ø  The energizing coils have been processed by special technology and thus its property of electrical and mechanical gets enhanced, Heat-resistant of insulating material reaches grade C and service life is long.

Ø  Rated duty cycle of normal electromagnet gets increased from 50% in the past to 60%, thus working efficiency gets improved.

Ø  Over-High temperature electromagnet adopts unique isolation from heat and radiation, the temperature of attached materials gets increased from 600°C in the past to 700°C, which expands application range of electromagnet.

Ø  A full set of auxiliary unit such as Control Cubicle, Cable Reel, etc., can be provided as well.

Ø  Installation, operation and maintenance are convenient.


lifting elctromagnet

lifting elctromagnet

lifting elctromagnet

lifting elctromagnet

lifting elctromagnet


lifting elctromagnet
